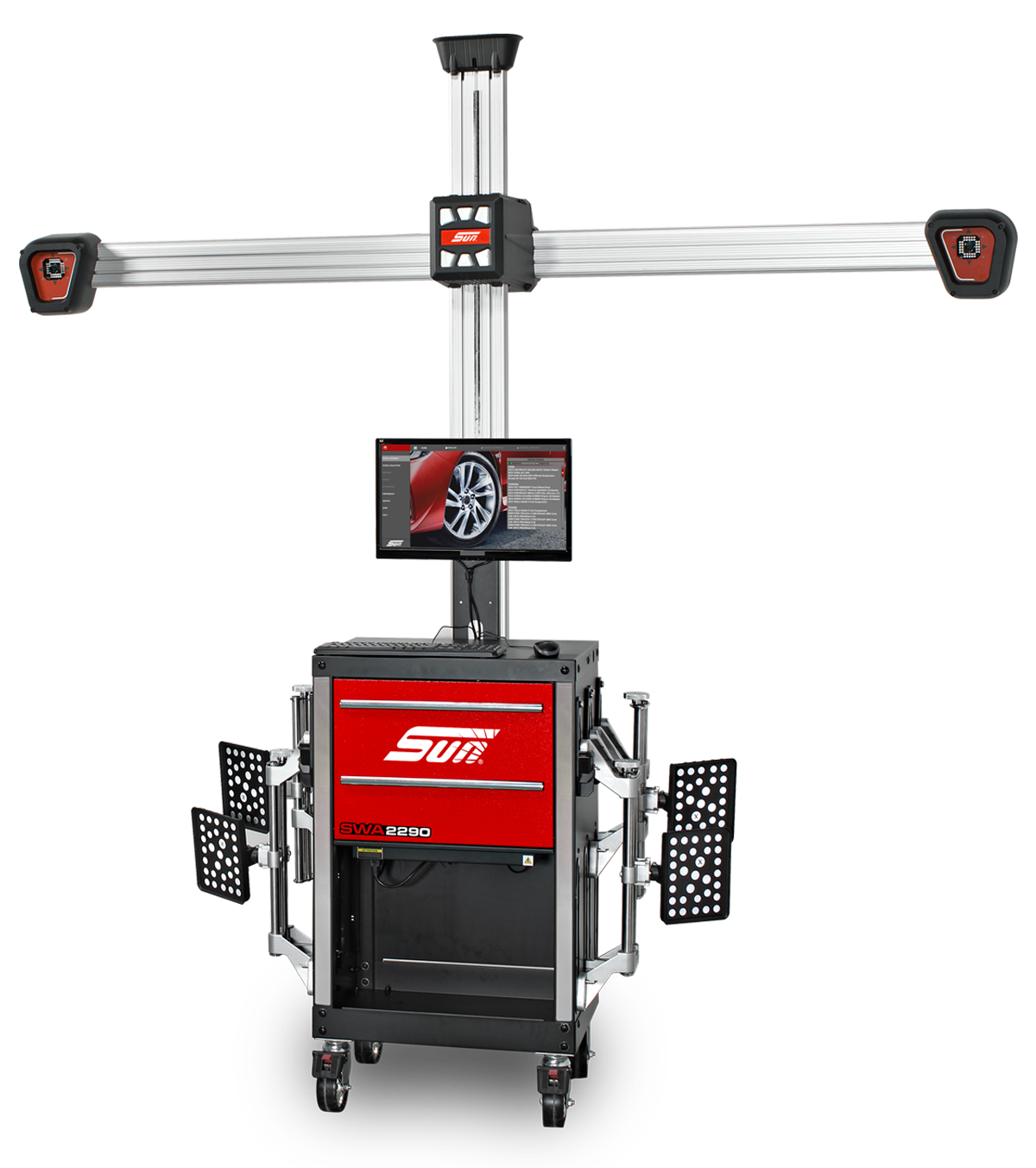

SWA 2290

DIAGNOSTIC WHEEL ALIGNMENT SYSTEM

EASY TO USE, FAST TO SETUP AND MORE FLEXIBILITY FOR YOUR SHOP

An advanced imaging alignment system doesn’t have to be complicated. The SWA 2290 was designed with technicians in mind to provide the core features you need for a perfect wheel alignment. Its advanced technology, combined with the simplest and most intuitive software, gives you all the tools to take your alignment business in the right direction.

NOTIFICATION SYSTEM

STAY ON TRACK THROUGH EACH STEP

We call it “Compensate-Warn-Alert” but all you need to know is that the system will compensate almost any error made during the alignment. Whether it’s due to suspension stress or loose components, the SWA 2290 will quickly fi nd and correct errors as they are made. If the system is unable to fi x an error, the technician will be notifi ed with the right instructions to fi x it.

AUTOMATIC TRACKING CAMERA BEAM

Cameras move automatically up and down following the targets so technicians don’t have to spend time on adjusting the height of the camera beam.

AUDIT CHECK - SELL MORE ALIGNMENTS

We can help you explain what additional repairs are needed. With features like Audit Check, you can uncover alignment problems and pick up extra services with easy-to-read printouts in under a minute.

AUTOMATIC ALIGNMENT MEANSUREMENT PRINT-OUT INCLUDES:

  • Measurement of track width
  • Front and rear toe
  • Camber
  • Wheelbase
  • Rolling radius
  • Cross diagonal

INTELLIGENT WORKFLOW

Intelligent & predictive alignment workfl ow for your selected vehicle without unnecessary steps. All the other features are always just one click away.

AND MUCH MORE...

  • High Resolution Cameras Produce Accurate, Live Alignment Readings and Diagnostic Data.
  • Video speed cameras constantly monitor the alignment and provide critical information to get the job done right.
  • Our new user interface streamlines workfl ow for enhanced productivity and ensures that alignment repair information from online repair information is always one click away.
  • Lightweight and Impact Resistant XD Targets and AC200 Clamps.
  • Track Width, Wheel Base, Off-Set and Set-Back.
  • EZ-Toe Eliminates the Need for Steering Wheel Holder.
  • Guided Adjustments of Single Tie Rod, Drag Link and Cradle.
  • 5” chrome, smooth rolling, locking, swivel caster wheels.
  • Part Number: EEWA144TH3
  • Wheel Size: 12”–24” (30.48cm–60.96cm)
  • Track Width: 48”–96” (122cm–244cm)
  • Wheel Base: 79”–180” (201cm–457cm)
  • Shipping Weight: 501 lbs. (227kg)
  • Power Requirements: 120/230V 1Ph 50/60Hz 15A

STANDARD

  • AC200 Clamps
  • Color Ink-Jet Printer
  • Brake Pedal Depressor
  • Steering Wheel Holder
  • Two Sided Claw (One kit per clamp): EAK0268J41B
  • Motorized Camera Support: EAA0483J81A

OPTIONAL

  • AC400 Clamps: EAK0320J35A - Tire Diameter Range :19”-39”
  • Wall mount universal clamp hanger - EAK0363J15A
  • 4” Extension Kit For Up To 28” Wheels: EAK0268K62A
  • 2” Extension Kit For Hubs: EAK0289J62B
  • Ride Height Target: EAK0256J71A
  • Low Profi le Tire Kit: EAK0268J40B
  • VIN Scanner: EAK0289J86B
  • Mobility Kit: EAK0350J84A
