Scissor Alignment Lifts

Alignment technicians prefer scissor lifts over 4-post lifts because they are easier to operate, provide increased accessibility to alignment adjustment areas, and are easier to load. Scissor lifts also use less floor space. Five scissor lifts fit into the same operating space as four 4-post lifts!

Click on one of the section titles to learn more about John Bean Scissor Alignment Lifts.



---

Common Features

Slip Plates Durable 72" slip plates glide on over-sized roller balls, allowing for the range of motion needed to apply rear alignment corrections. Slip plates are low-maintenance due to strategically-positioned openings in the runway, which quickly disperse water and dirt - allowing for reliable performance every time!

Work Steps Work steps on each side can be adjusted to 8 different positions, granting easy access to underhood and steering wheel adjustments. Hidden, yet easy-to-reach work step storage under the front of each runway

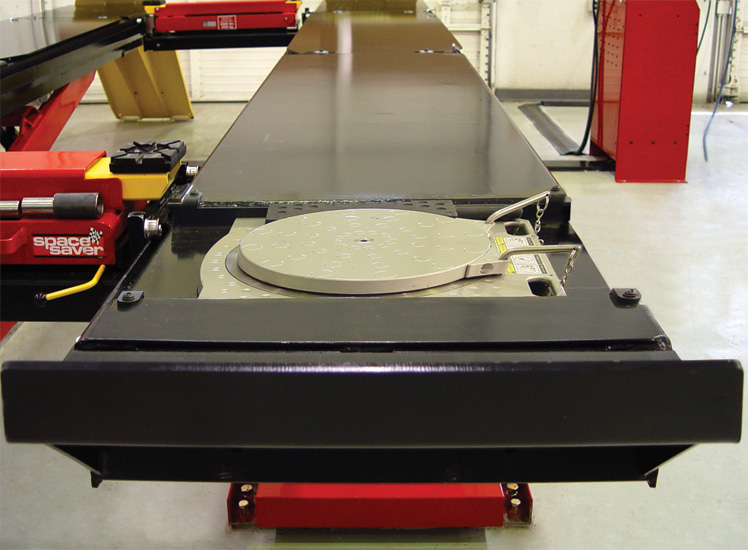

Widest Runways Long and wide runways allow for alignment service on a wide range of vehicle widths and wheelbases.

Integrated Air Kit Connect Roller Jacks and air tools for increased productivity! A port can be added in for customer-supplied quick-connect allowing for an easy air tool connection point

Base Frame Full-length base frame allows for fast installation and increases structural integrity.

Smooth Lifting Ultra-Hight Molecular Weight slide blocks allow for smooth and uniform lifting.

Triple Safety System Includes large twin-interlocking air-actuated mechanical safety locks featuring 18 level and locked positions, velocity fuses and pressure-sensing flow control valves.

Operator Console Completely enclosed, protecting electronics and hydraulics.

One Piece Slider One piece sliders prevent damage to floors and are quieter than conventional metal rollers.

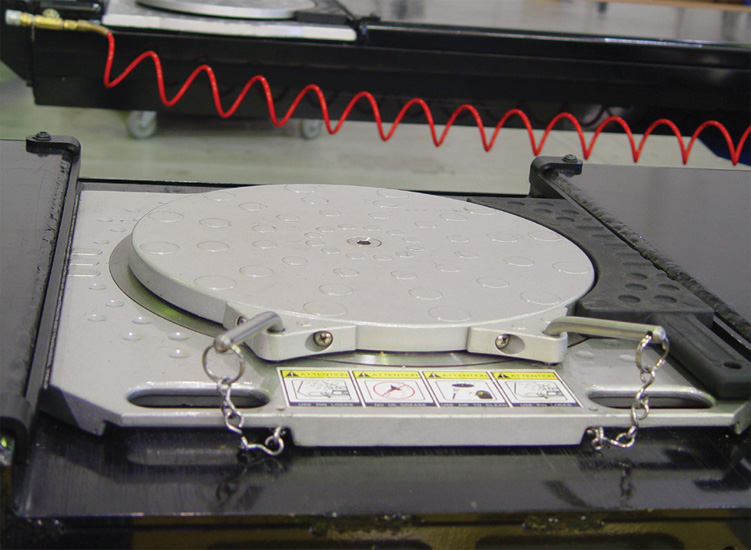

Optional Premium Turntables Optional premium turntables prevent runway scratching and allow for full range of motion when making alignment adjustments.

Back To Features List

---

Flush-Mount Models

• 14K Flush-Mount: 4814605AFM
• 10K Flush-Mount: 4810605AFM, 4810605AFMX
• Zero Drive-Over Clearance!

Back To Features List

---

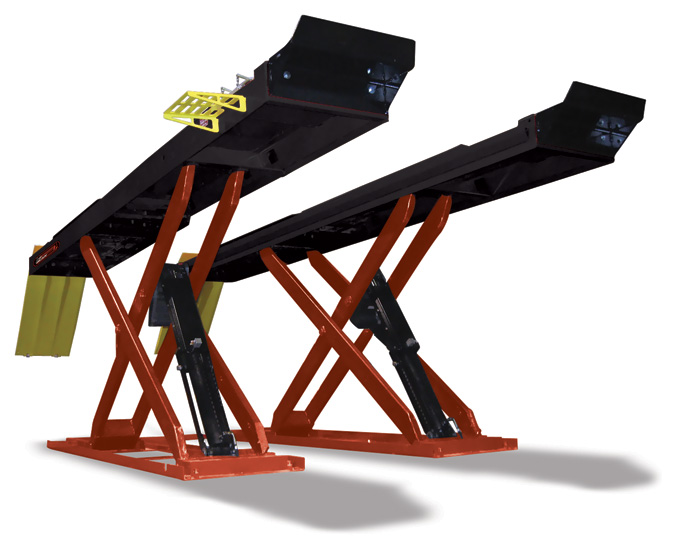

10K Scissor Features

• 10,000 lb. lifting capacity
• Proportionally-controlled, hydraulically-synchronized lifting systems with 2 powerful heavy-duty lifting cylinders to maintain level from floor to 72" of lifting height
• Low-profile stance of 9" allows for a gentle drive-on approach for low-profile vehicles
• Compact, enclosed console protects core components from the shop environment
• Full-length base frame accommmodates fast installation and increases structural integrity

Back To Features List

---

14K Scissor Features

• 14,000 lb. lifting capacity
• Advanced liftintg system has 4 powerful cylinders that maintain a level position at any point from the floor up to 72" of lifting height
• Low-profile stance of 10" allows for a gentle drive-on approach for low-profile vehicles
• Compact, enclosed console protects core components from the shop environment
• Full-length base frame accommmodates fast installation and increases structural integrity

Back To Features List

---

Line Drawings

(4814605AF) Surface-Mount Diagram

(4814605AFM) Flush-Mount Pit Diagram (Optional Console Location - Front or Rear)

(4810605AF/4810605AFX) Surface-Mount Diagram

(4810605AFM, 4810605AFMX) Flush-Mount Pit Diagram (Optional Console Location - Front or Rear)

These diagrams are for promotion illustration purposes only, and should not be used as installation instructions. Contact your local Equipment Sales Specialist if further information is needed. Layout subject to change without notice, request detailed layout drawing for pit construction.

---

Back To Features List | Back To Top

	4810605AF 4810605AFM*	4810605AFX 4810605AFMX*	4814605AF 4814605AFM*
Lifting Capacity	10,000 lbs	10,000 lbs	14,000 lbs
Overall Width	92.5"	92.5"	92.5"
Width Between Runways	38"	38"	38"
Overall Length (Surface-Mount)	255.375"	265.345"	270"
Overall Length (Flush-Mount)	223.625"	234.625"	238.625"
4-Wheel Alignment Wheelbase (Min./Max.)	88"/155"	88"/155"	88"/155"
2-Wheel Alignment Wheelbase	165"	175"	182"
Service Wheelbase	179"	189"	196"
Runway Surface Length†	195.5"	205.5"	210"
Runway Surface Width	26"	26"	26"
Maximum Raised Height	72"/63"*	72"/63"*	72"/62"*
Maximum Lowered Height	9"/0"*	9"/0"*	9"/0"*
Operator Console Dimensions (DxWxH)	16.5" x 14.125" x 45.75"	16.5" x 14.125" x 45.75"	16.5" x 14.125" x 45.75"
Lifting Time	65 seconds	65 seconds	65 seconds
Lowering Time	65 seconds	65 seconds	45 seconds
Air Supply Requirements	90 - 120 PSI	90 - 120 PSI	90 - 120 PSI
Shipping Weight‡	5,452 lbs	5,552 lbs	5,793 lbs
Power Requirements	230V, 1Ph, 60HZ	230V, 1Ph, 60HZ	230V, 1Ph, 60HZ

^† Does not include front wheel stop. | ^‡ Includes Roller Jacks. | * Flush-Mount Models.

Standard Accessories

Part Number	Description
JBC0100	Tsunami Kit (Water Separator/Regulator/Lubricator Kit)

Optional Accessories

Part Number	Description
JBC217	Roller Jack, 7,000 lbs. Lifting Capacity (Requires two for 14K Scissor Lifts)
EELR503A	Low-Profile Roller Jack, 5,000 lbs. Lifting Capacity (Requires two for 10K Scissor Lifts)
JBC054R	Stainless Steel Turntables (Includes Rollback Bars. Dimensions (LxWxH): 14.75" x 14.75" x 1.37")
EAK0289J06A	Premium Turntables (Dimensions (LxWxH): 18.5" x 19.7" x 2")
EAK0277J57A	Dust Cover for Premium Turntables
EAK0277J28A	Paddle Kit for Premium Turntables
EAK0277J67A	10K/14K Scissor Roll-back Kit
JBC01200000	Sliding Waste Oil Collection Tank (26 gallon)
JBC0102	Ramp Extension Kit (For Surface-Mount lifts only)
