4-Post Closed Front

Alignment Lift
Models: 4812405ST, 44212Q, 44218Q

Heavy Duty 4-post, closed front and rear, alignment lifts, 12,000 lb. and 18,000 lb. capacities. An accurate alignment starts with a flat and straight runway. The underside of each runway is heavily re-enforced, ready to handle maximum loading. Heavy pre-stressed 9/16" cables connect to the under runway mount hidden cylinder.

Unlike competitors, the runways and beams are supported off the floor to provide toe and foot protection.

44218Q is the only certified alignment lift in its class to meet the current ANSI ALCTV-2006 standard, ALI certified by ETL.

→ Key Benefits
→ Specifications

Key Benefits

One piece roll formed decks for added strength and a uniform flat surface
Hidden lifting cylinder under the deck improves accessibility and prevents door damage
Heavier 6×36 - 9/16" pre-stressed steel cables for longer maintenance free service
21 alignment-level safety-locked working heights

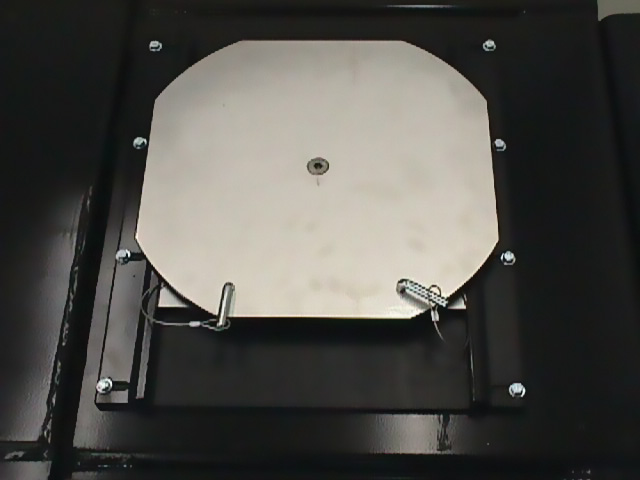

Turntable cutouts and integrated rear slip plates (alignment ready)
Built-in air connections for air tools and roller jacks

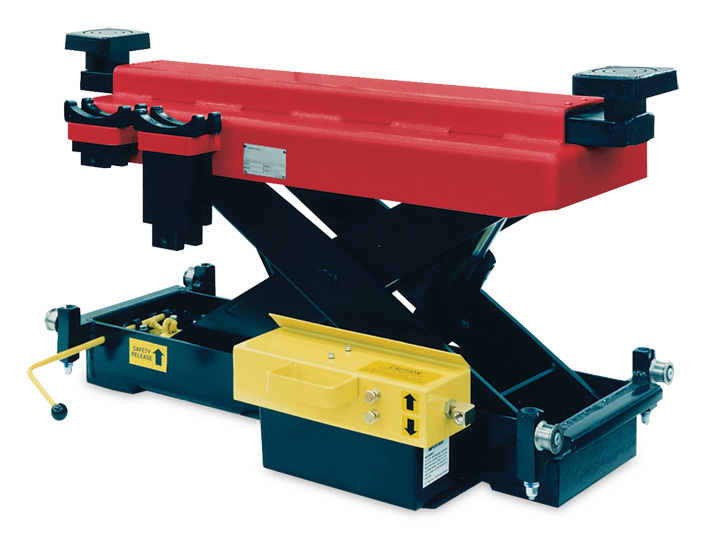

Two roller jacks standard with all models
Triple back up safety systems: mechanical locks on each column, auto engaging mechanical locks and hydraulic pressure safety valves
Front and rear safety stops
ALI / ETL / CSA certified

Specifications

	4812405ST	44212Q	44218Q
Front Accessibility:	Closed	Closed	Closed
4-Wheel Alignment Wheel Base (max):	144"	144"	144"
2-Wheel Alignment Wheel Base (max):	154"	172"	210"

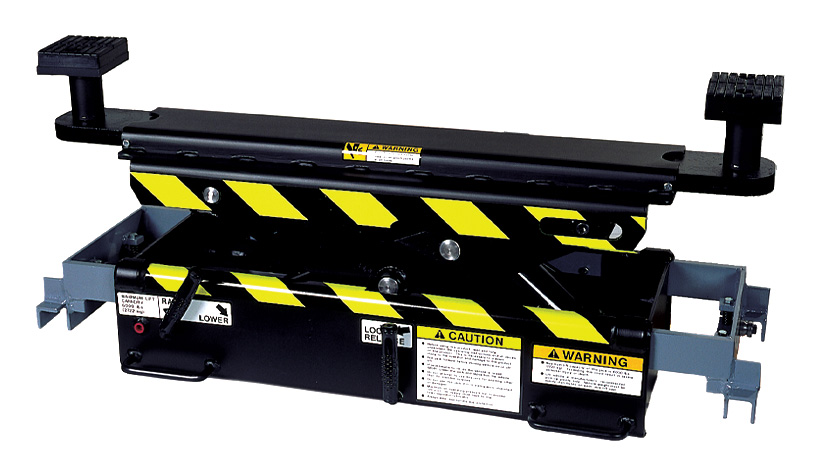

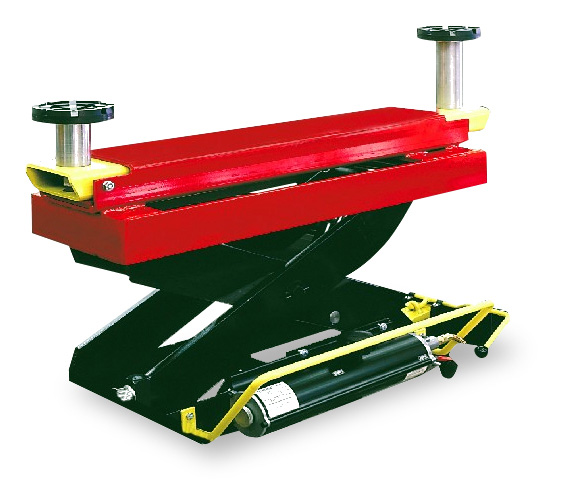

Roller Jacks:	2-JBC216	2-JBC216	2-JBCWB9
Runway Width:	24"	24"	24"
Distance Between Runways:	36"	36"	40"
Overall Width:	137"	137"	149.5"
Overall Length:	235"	266"	304"
Lifting Capacity:	12,000 lbs.	12,000 lbs.	18,000 lbs.
Maximum Raised Height:	71"	71"	71"
Minimum Lowered Height:	10"	10"	10"
Lift Time:	60 sec.	60 sec.	64 sec.
Shipping Weight:	4,200 lbs.	4,320 lbs.	4,200 lbs.
Standard Power Requirements:	208 - 230V,1 Ph	208 - 230V,1 Ph	208 - 230V,1 Ph
