Product Overview

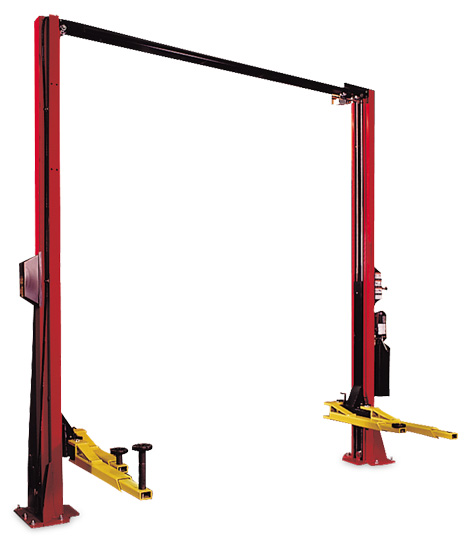

10K 2-Post combo automotive/general-purpose lifts combine high capacity with quality features and versatility at the most reasonable cost of any North American manufactured lift.
Third-part tested, ANSI ALCTV-2006 standard, ALI certified by ETL.
Click on one of the section titles to learn more about the 10K 2-Post Combo Automotive/General-Purpose Lift.
Features
- Integrated symmetric/asymmetric design delivers 2 choices for optimum vehicle lifting
- Single-point safety lock release for 2-hand lift lowering - keeps the operator safe while lowering the lift!
- Mechanical safety locks at 17 operating positions for added safety
- Dual-function micro-switch activates vehicle height safety rod and increases life span of drive motor and cylinders
- Industrial-strength columns for increased strength and durability
- Pre-loaded lift arms are straight even when loaded!
- Dual pre-stressed equalizing cables ensure level lifting!
- Overhead beam reinforces lift structural integrity
- Three-stage telescoping arms provide maximum reach and vehicle coverage
- Stack pad style lift works with both cars and trucks, includes a set of 3" and 6" stack adapters
- Fully-supported arm pins prevent lifting arms from sagging. Nickel/zinc-plated arm pins increase lifting arm’s lifespan
- Bolt-on gear-cut arm restraints increase lifting arm stability
Specifications
| Lifting Capacity | 10,000 lbs |
|---|---|
| Overall Width | 135" |
| Overall Height | 144" |
| Width Between Posts | 110" |
| Maximum Lifting Height | 79.25" (with 6" adapters) |
| Under Bar Clearance | 140" |
| Drive Through Width | 88" |
| Lifting Time | 45 seconds |
| Shipping Weight | 1,500 lbs |
| Power Requirements | 230V, 1Ph, 60HZ |
