EHP System III-E

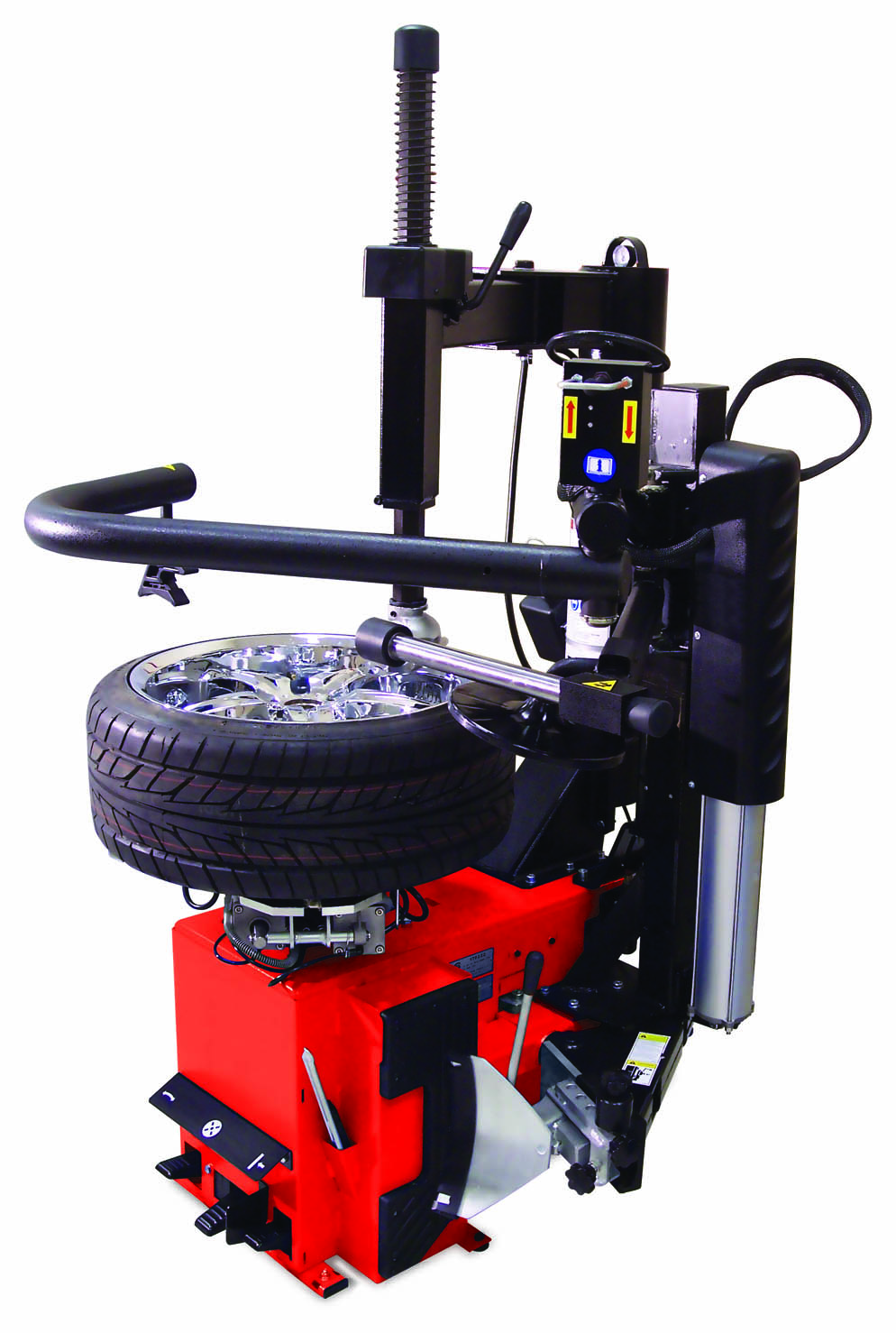

The John Bean EHP System III-E tire changer is ideal for handling passenger car, ligth truck and high-performance wheels found today. It features 24" outside clamping, 26" inside clamping and outer tire diameters of 50" (42" if used with the optional Pneumatic Bead Assist) and wheel widths up to 15". The EHP System III-E features pneumatic locking of the vertical wheel offset offset and a large-diameter horizontal offset knob, providing maximum cosmetic safety for expensive wheels and significantly reducing risk of wheel or tire damage. (Shown with Optional Pneumatic Bead Assist)

Click on one of the section titles to learn more about the EHP System III-E Swing-Arm Tire Changer.



---

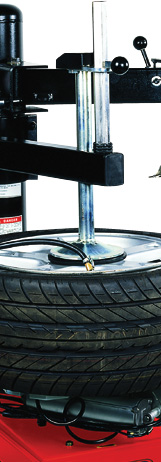

Optional Safety Restraint Arm*

• Positively restrains wheel and tire assembly to the tire changer during the inflation process
• Reduces potential for injury by the unlikely event of wheel or tire failure
• Simple swing-arm design easily swings in from the left
• Allows the technician to quickly and safely perform tire inflation without disturbing the tire changing procedure
• Positioning safety interlock switch ensures that the SRA is centered on the wheel and tire assembly before the inflation process can begin
• Anti-Rotation Lock prevents the SRA from moving during the inflation process or in the event of an accidental explosion
• Gravity lock engages automatically without operator intervention and ensures the wheel is secured prior to inflation

Back To Features List

---

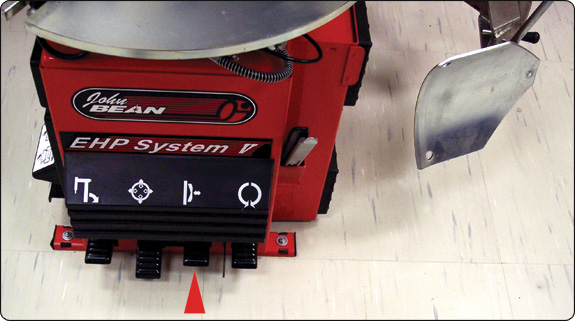

Ergonimically-Positioned Bead Breaker Control

• Pedal is positioned away from the bead breaker with a guard, preventing the operator from accidentally stepping on and activating it while standing next to the bead breaker

Back To Features List

---

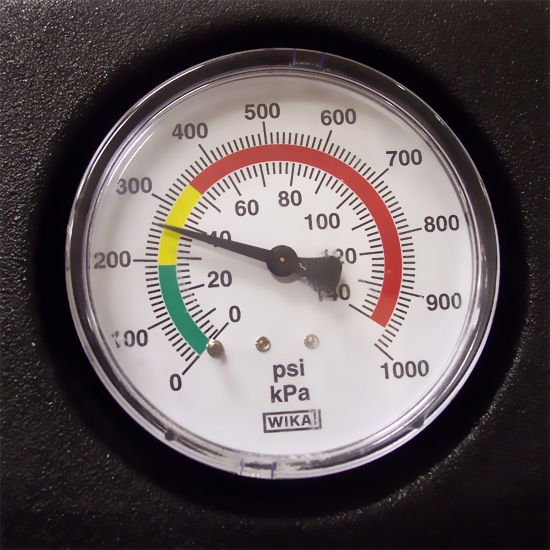

Integrated Pressure Limiter

• Stops air flow once pressure has reached 55 PSI (3.5 Bar), thereby preventing accidental tire over-inflation

Back To Features List

---

Adjustable Four-Jaw Clamp

• Self-centering nylon-covered clamps grip securely and protect the wheel
• Reduced-angle jaws ensure no slippage
• Air inflation jets assist bead seating

Back To Features List

---

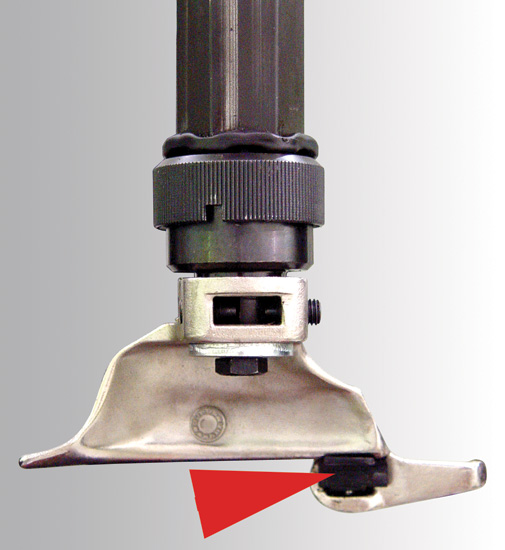

Extra Wheel Protection

• Replaceable nylon inserts for demount heads prevent wheel scratching
• Replaceable polymer remount heads are also available for extended protection

Back To Features List

---

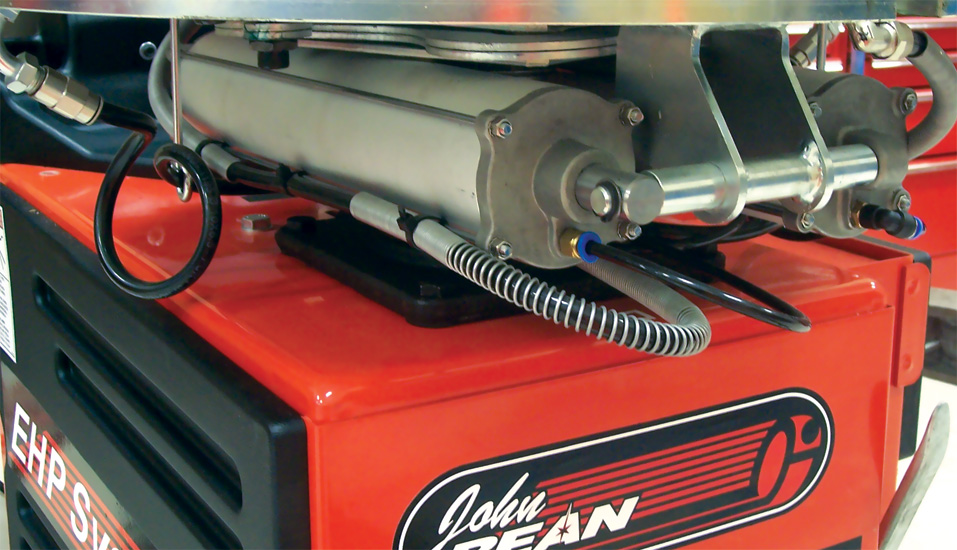

Twin-Cylinder Clamping

• Two powerful clamping cylinders provide uniform clamping pressure and increased clamping power

Back To Features List

---

Bead Breaker

• Provides precise power and can be toggled with the foot pedal as needed
• Both the stiffest and the softest sidewalls are a snap
• No damage to tires while loosening the bead

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Outer Clamping Diameter Range	10" - 24"
Inner Clamping Diameter Range	12" - 24"
Maximum Wheel Width	15"
Maximum Outer Tire Diameter	50"
Compressed Air Supply	110 - 170 PSI
Bead Breaker Power	3,400 lbs.
Bead Breaker Range	2" - 18"
Recommended Floor Space	67" wide × 69" deep
Shipping Weight	805 lbs.
Power Requirements	120V, 1Ph, 60Hz

* Specifications based on OEM Tires.
