Quadriga ATC 1000

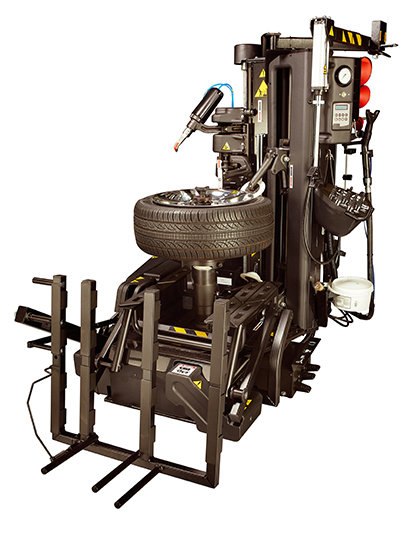

The Quadriga ATC 1000 is the industry’s first truly automatic tire changer. No other tire changer automatically measures tire diameter, uses imaging technology to precisely profile the wheel, automatically positions the tire for hydraulically-driven dual bead breaking, and uses precise motor controls to remove the tire from the wheel.

Standard features include an integrated wheel lift to handle heavy lifting, a hydraulically-activated center clamp that safely clamps the wheel without the risk of damage associated with table-top machines. Smart Vision™ laser-guided bead-breaking and demounting tools completely eliminate tool-to-wheel contact for damage-free and worry-free tire and wheel handling. The Quadriga ATC 1000 is the first tire industry application of laser imaging brought to you by the company that invented imaging technology for use with shop equipment. Relax...It’s Automatic!



Click on one of the section titles to learn more about the Quadriga ATC 1000 Fully-Automatic Tire Changer.

---

Do No Harm™ Grade Equipment

Handling today’s alloy and composite wheels are a critical part of the overall customer satisfaction experience. John Bean has designed the Quadriga ATC 1000 to "Do No Harm" when handling expensive wheels and tires.

Back To Features List

---

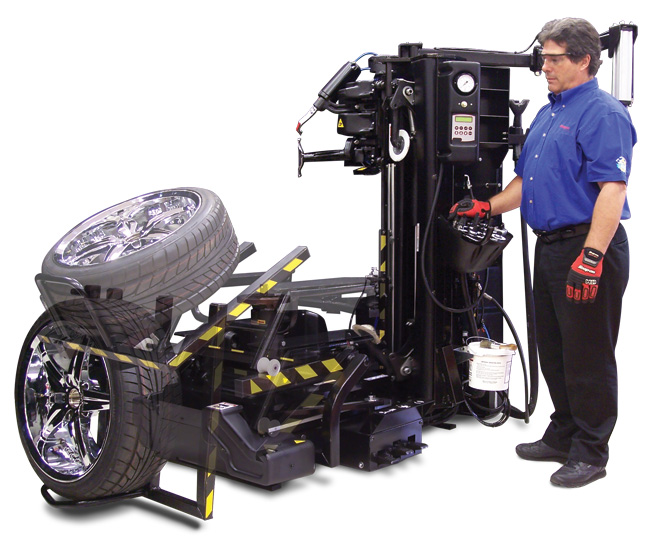

Intelligent Wheel Lift

• Essential for today’s heavy tires and wheels
• Front-mounted wheel lift with single switch control, effortlessly positions the tire on the turntable
• Automatically measures the outside diameter of the tire, allowing for accurate positioning on the pedestal when lifted!
• Ensures proper handling, reducing chances of damaging expensive wheels
• A standard feature - unlike competitor’s models

Back To Features List

---

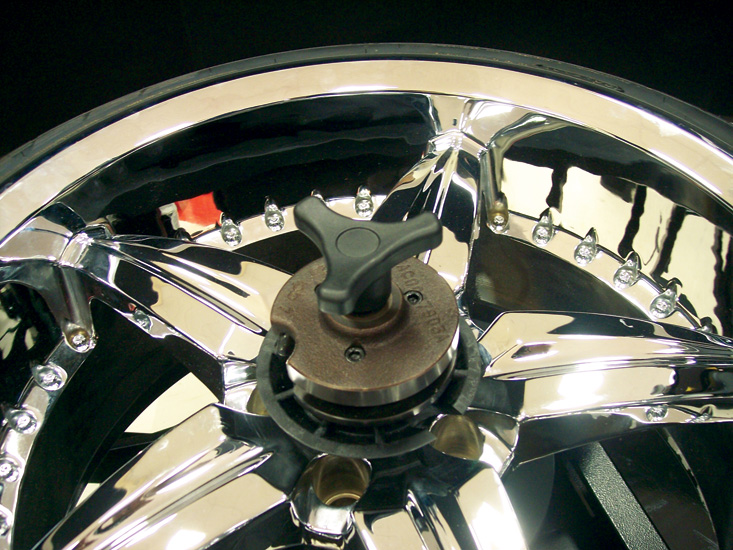

Center-Post Hydraulic Clamp

• Quick and effortless clamping of the wheel and tire assembly
• Eliminates wheel diameter as a factor in being able to handle all custom and OEM wheels
• Enhances operator safety and eliminates wheel damage associated with outer/inner wheel clamping
• Clamps at the center, the wheel’s strongest point

Back To Features List

---

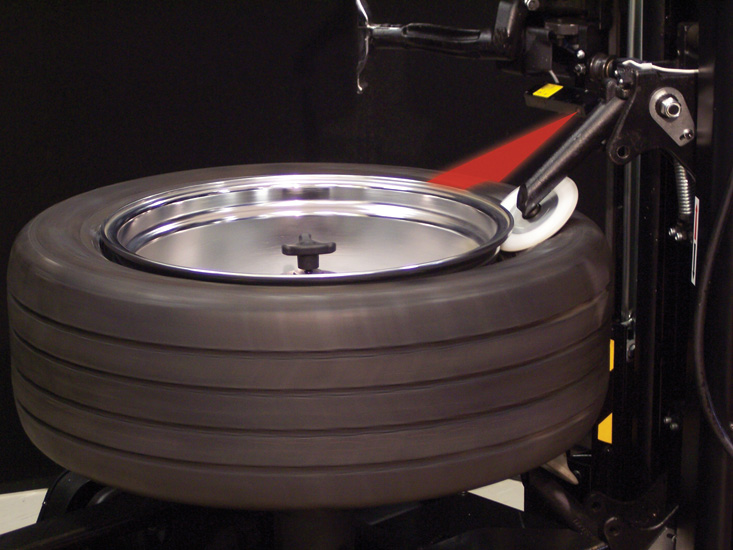

Smart Vision™ Wheel And Tire Profiling

• Assures precise, worry-free tire removal and installation
• Translates laser-imaging profiles into precise positions for the bead breaker rollers and robotic bead removal tools
• From the Inventors of Imaging Technology for Shop Equipment

Back To Features List

---

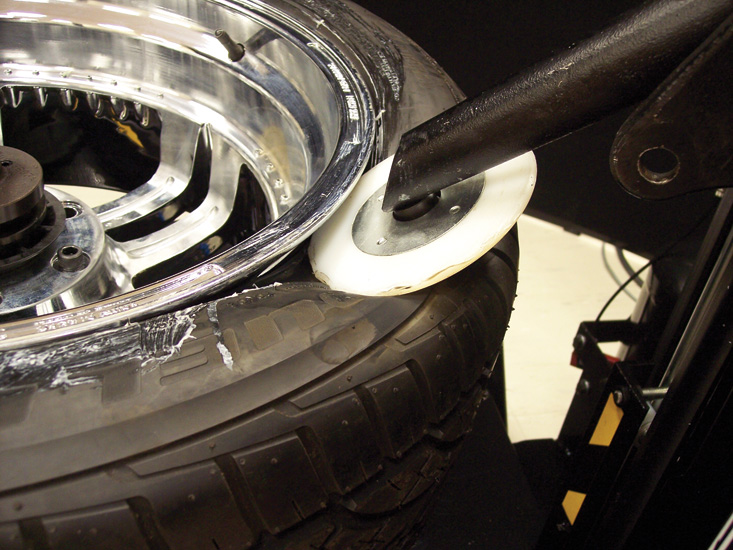

No-Contact Upper And Lower Bead Breaker Discs

• Computer-programmed sequence that assures precise placement of the upper and lower polymer disc rollers
• Smoothly and effortlessly rolls the bead off the wheel, unlike shovel-styled bead breakers
• Assures safe separation of tire beads from the wheel’s bead seat area without fear of damaging tires, wheels, or inflation sensors
• Works on reverse drop-center wheels without additional effort

Back To Features List

---

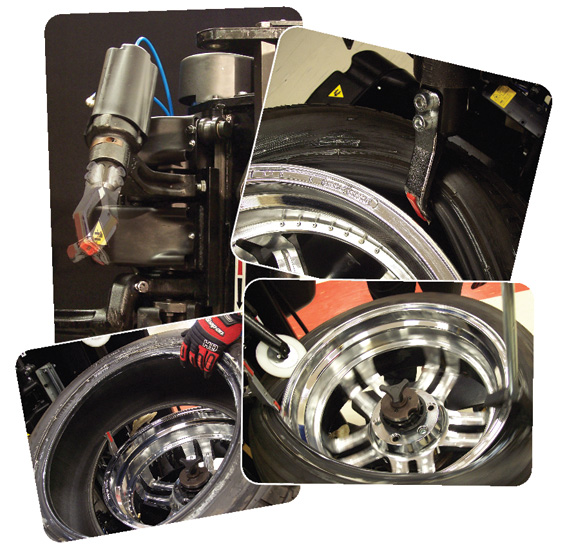

Leverless No-Contact Mount/Demount Tools

• Tools are automatically positioned safely and precisely via patented imaging technology - eliminating damage caused by tool-to-wheel contact
• Designed to perfectly match the shape of the tire bead and wheel bead seat area
• Assures precise and consistent removal of the tire with no contact to the wheel
• Mounting tires is just as safe and easy as removing them!

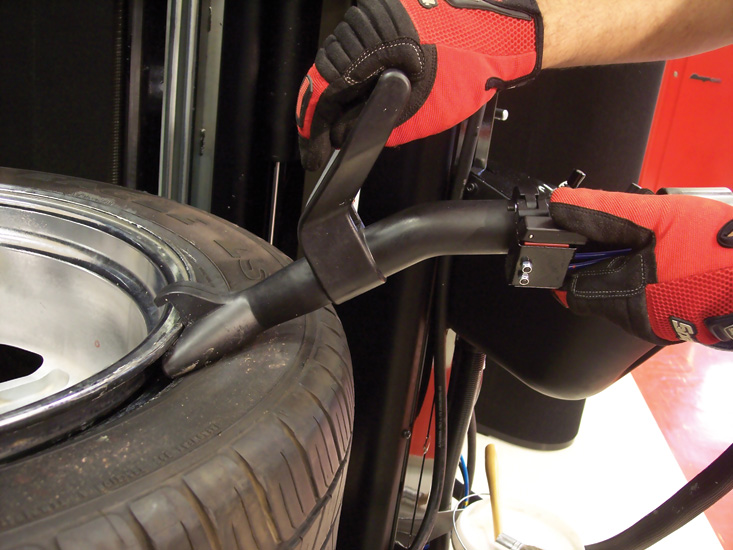

• Bead Push™ - Integrated bead pusher aids in mounting the upper bead on any tire with ease. Unique two-position design controls positioning the bead into the drop center. No need to involve another technician - it’s like having another set of hands!

Back To Features List

---

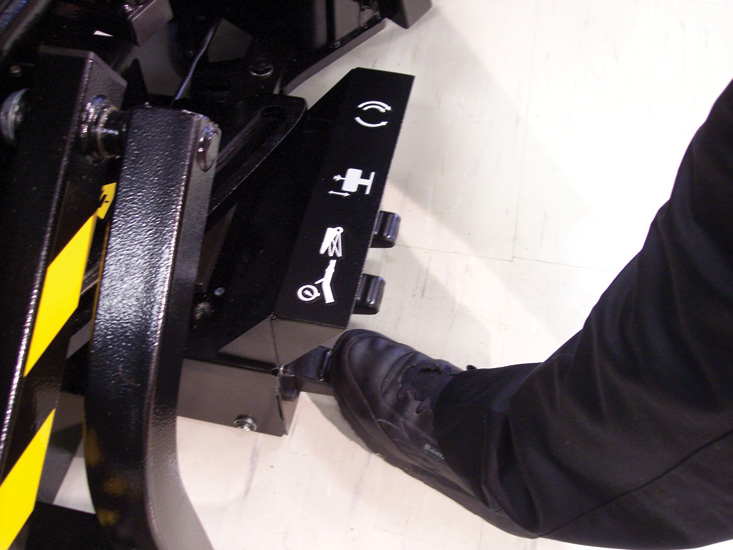

Topside Inflation

• Dual controls and double-step blast controls assure safe inflation on a wide range of tires and wheels
• Topside bead blast is the best way to inflate today’s stiff sidewall and EMT tires

Back To Features List

---

Match-Mounting

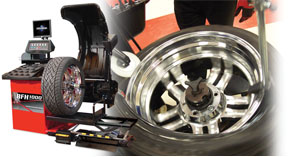

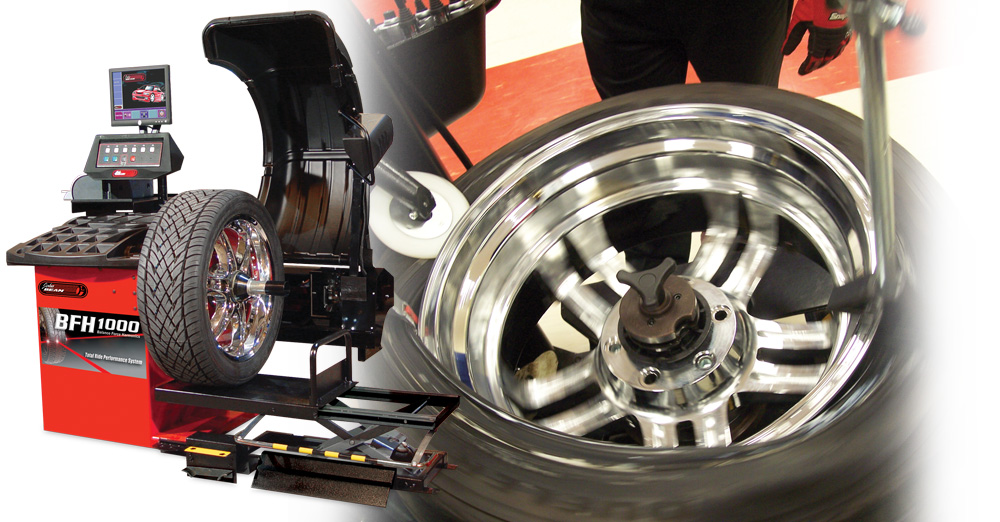

To make the most of your Tire Changer investment, pair the Quadriga ATC 1000 with John Bean’s BFH 1000 Total Ride Performance Wheel Balancer System. The BFH 1000 uses touchless, laser imaging technology to determine the optimal match for each tire and wheel assembly. The Quadriga ATC 1000 then quickly indexes the tire and wheel. Eliminate customer comebacks by reducing vibration due to non-uniformity issues!

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Wheel Diameter Range	10" - 30"
Maximum Tire Diameter	47"
Maximum Wheel Width	17"
Maximum Wheel Weight	154 lbs
Air Requirements	100 to 170 PSI
Dimensions (DxWxH)	67"x47"x79"
Shipping Weight	2,050 lbs
Power Requirements	120V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
ST4028648	Magic Bead Pusher
ST4026853	Rim protector, snaps onto rim of wheel

Optional Accessories

Part Number	Description
EAA0351G60A	Reverse-Mounted Wheel Kit
EAA0351G29A	Light-Truck Wheel Kit
