EHP System II E

EHP System II E

"Swing Arm Style"

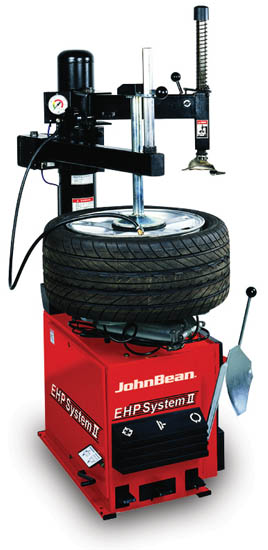

EHP Series Tire Changer
Model: EEWH512AE

This swing arm style tire changer features 24" outside clamping standard, 28" outside clamping with optional adapters. Total tire and rim diameter to 40" and rim width to 12". This tire changer can handle virtually every wheel available today from the OEM’s or the aftermarket. Swing arm units feature automatic mechanical locking of the vertical rim offset and a technician positioned large diameter horizontal offset knob to provide maximum cosmetic safety for expensive wheels. The swing arm allows the technician to move the mount/de-mount arm clear of the turntable for maximum clearance for placing rims and tires in the mount/de-mount clamping position. Optional is the Pneumatic Bead Assist. The assist function is positioned on the right side, convenient to the technician. Three individual assemblies, a top pressing roller, a bead depressing foot and a lifting disc aid the technician in mounting and de-mounting today’s low aspect and run flat tires. An optional PAX adapter is also available.

→ Key Benefits
→ Options
→ Specifications

*Patented and/or Patent Pending Features

Key Benefits

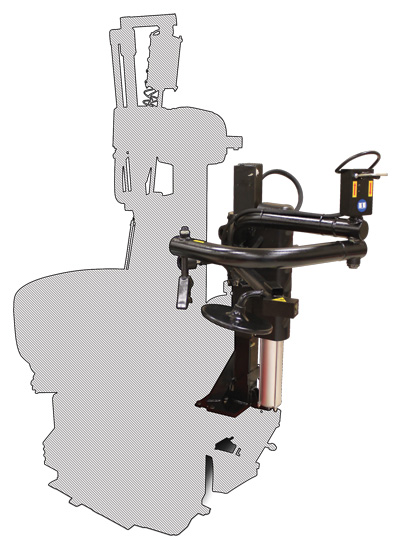

• Optional Pneumatic powered bead assist for servicing stiff wall and / or low profile tires
• Large adjustable clamping turntable w/outside clamping up to 24"
• Less wheel slippage with powerful twin cylinder clamping
• Eliminates scratched finishes
• Integrated nylon head inserts
• No rim-contact demount head
• Safer Operation
• Unique safety restraint arm protects operator in case of tire (Ordered Separately)
• Tire pressure limiter valve to protect from over inflation
• Better Product Protection/Service
• Reinforced tower construction
• Lifetime lubrication valve
• Water separator/oiler standard
• National service organization support backup

Back to Top

Options

• Model EEWH512A55: Available without Safety Restraint Arm
• MH310: Hydraulic Bead Assist for high performance,low profile, and non-flat tires
• Options: Adjustable turntables, and clamping layouts for 20", 22", and 24" wheels

Back to Top

Specifications

*With optional 4" extension adapter
