EHP System V

EHP System V

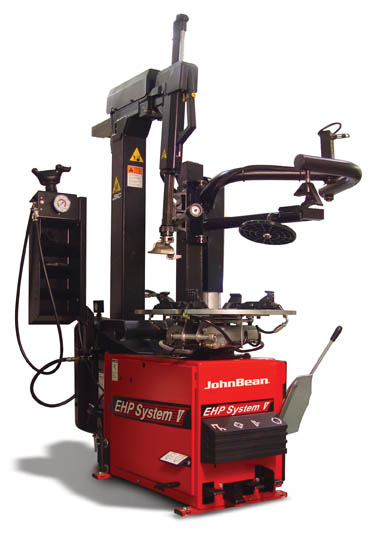

"Top of the Line" Automatic Tilt Tower
EHP Series Tire Changer
Model: EEWH517AE

This automatic tilt tower tire changer features 26" outside clamping standard, 30" outside clamping with optional adapters. Total tire and rim diameter to 47" and rim width to 16". This tire changer can handle virtually every wheel available today from the OEM’s or the aftermarket. Automatic tilt tower units feature automatic pneumatic locking of the rim offset to provide maximum cosmetic safety for expensive wheels. The tilt tower also provides the technician with maximum clearance for placing rims and tires in the mount/de-mount clamping position. Standard is the Pneumatic Bead Assist. The assist function is positioned on the right side, convenient to the technician. Three individual assemblies, a top pressing roller, a bead depressing foot and a lifting disc aid the technician in mounting and de-mounting today’s low aspect and run flat tires. An optional PAX adapter is also available.

→ Key Benefits
→ Options
→ Features
→ Specifications

*Patented and/or Patent Pending Features

Key Benefits

• Maximum versatility for Today’s and Tomorrow’s wheels; no turned away no customers.
• Racing wheels are no problem
• More subtle movement of blade ensures careful handling of rim during operation
• Provides optimum bead breaker angle for improved productivity
• Prevents slippage and possible wheel damage
• Eases operator effort, but still allows manual guidance of movement
• Positions mount demount head in optimum position to minimize potential rim damage
• Polymer insert protects rim and prevents wheel clear coat damage
• More precisely centers the rim for mount and demount
• Eliminates possible rim scratches or clear coat damage during clamping
• Improves productivity via more organized work area
• Hands-free productivity
• Unclutered work area; on-demand air
• Versatility at hand when needed
• Maximizes productivity

Back to Top

Options

• Model EEWH513A55: Available without Safety Restraint Arm
• MH320: Hydraulic Bead Assist for high performance, low profile and non-flat tires
• Options: Adjustable turntables, and clamping layouts for 20", 22", and 24" wheels

Back to Top

Features

• Clamping capability from the outside up to 26" (extension capability to 30" from outside with optional accessories)
• Maximum rim width 17"
• Double acting bead breaking cylinder
• Bead breaker adjustable in 2 positions
• Bead breaker with robust, antiskid contact pad
• Over-size bead breaking blade
• Pneumatically controlled movement of the mounting head toward the rim
• One-part mounting head is vertically and laterally adjustable in spaced apart position relative to the rim
• Mounting head is equipped as standard with a plastic protection in the nose
• Mounting column, pneumatically hinged to the rear upon pedal operation
• Self-centering four-jaw chuck with two clamping cylinders
• Inner part of the jaw is equipped with a plastic protection for the rim
• Dedicated storage for quick exchange device
• Foot operated inflation gauge
• Table inflation with outside tank
• Standard quick exchange device as standard
• Pneumatic bead assist MH 320 (extended version) as standard
• Capable to handle run flat tires EMT, DSST, RFT, eufori@, ZeroP, SSR
• Capable to handle CSR and PAX using a CSR or PAX adapter for the MH 320

Back to Top

Specifications

*With optional 4" extension adapter
