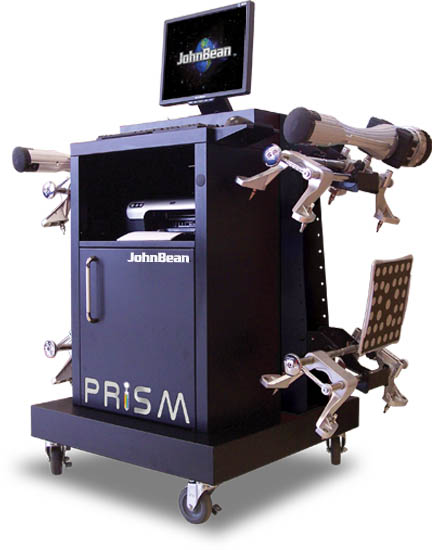

Prism

Wheel Aligners - Page: 1 | 2

Product Overview

The award-winning Prism is the world’s first alignment system to combine imaging alignment technology in a portable package. It provides dramatic productivity improvements and offers more features than conventional aligners, at a lower price. The Prism leverages a wireless communication system with Bluetooth™ technology, cordless pods powered by Lithium Ion batteries, and components made from lightweight magnesium. The Prism combines advanced technology and affordability to take your alignment business to the next level.

The Prism will enable you to:

  • Do alignments quickly from virtually anywhere in the shop
  • Reduce the time required to perform corrective actions
  • Rely on advanced, lightweight components that are designed with the technician in mind
  • Make More Money!
      Get Adobe Reader!

Click on one of the section titles to learn more about the Prism Wheel Alignment System.

Features




User-Friendly Interface

User-Friendly Interface

  • Make technicians experts with easy-to-use graphics and job aids
  • Use available step-by-step instructions as a guide for completing even the most complex tasks consistently - the first time

Back To Features List




Manufacturer Specs

Manufacturer Specs

  • Handle a wide variety of vehicles that come in your shop
  • Rely on a comprehensive manufacturer database spanning 25+ years

Back To Features List




Color Customer Reports

Color Customer Reports

  • Enhance customer satisfaction with personalized reports showing readings before and after service

Back To Features List



Access and Update Customer Records

Access and Update Customer Records

  • Review and discuss vehicle service history - and up-sell more services - at the right time

Back To Features List



Ride Height Measurement

Ride Height Measurement*

  • Measure ride height and obtain proper alignment specs for those vehicles requiring it

Back To Features List



EZ-Toe

EZ-Toe*

  • Turn the front wheels and access difficult adjustment points without losing contact with the aligner console
  • Significantly reduce front toe adjustment times

Back To Features List



3D Images

3D Images

  • View detailed, three-dimensional depictions of needed adjustments and identify the right tools to complete even the most complex tasks

Back To Features List



VMI

VMI

  • Save time by viewing results of runout directly on the pod without stopping or repositioning to look at the monitor

Back To Features List



VMI

Cordless Lithium Ion Rechargeable Batteries

  • Lithium Ion batteries can go up to a full week without recharging
  • Battery display on the pod shows the percentage of power remaining
  • Alerts notify the technician when the pod’s battery reaches a certain discharge level
  • Electronic components are designed with ultra-low power requirements to maximize battery performance

Back To Features List



Hardware That’s Built To Last

Hardware That’s Built To Last

  • Advanced design requires pods at rear wheels only, reducing overall component weight by 50%
  • Passive front wheel targets improve durability - no electronics to damage
  • Magnesium pods, targets and clamps are durable, impact resistant and lightweight

Back To Features List

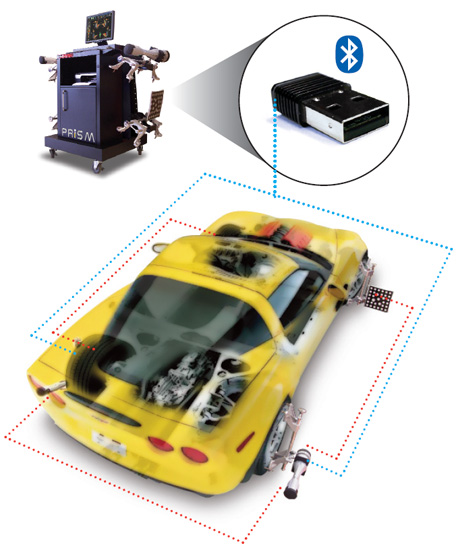

Bluetooth-Enabled Wireless Communication

Bluetooth-Enabled Wireless Communication

  • Perform alignments within 330 feet (100 meters) of the console - even in areas that have high electrical interference - for true portability
  • Pods communicate with each other and the console using Bluetooth™ wireless technology

Back To Features List



Productivity-Enhancing Features

  • Zoom Readings
  • Individual Camber
  • Individual Toe
  • Individual Caster
  • Front Caster (-28° to 28°)
  • Front and Rear Camber (-15° to +15°)
  • Advanced Alignment Measurements with Readings/Specifications and Cross Values
  • Meter Screens
  • Remote Control (Optional)
  • 3D Animation
  • Video Help
  • A-Arm Adjustments
  • Adjust Camber Only
  • Elevated Adjustments
  • 4-Wheel Steer Adjust
  • Rear Shim Programs
  • Multiple Rack Support (3)
  • Adjustment Help Files
  • EZ-Track Database
  • Vehicle Specs: 25+ Years
  • EZ-Toe*
  • Ride Height*
  • 2-Wheel Alignment
  • Thrust Align Only
  • 28 Languages
  • Multiple Print Formats
  • Custom Vehicle Specifications
  • Regional Specifications
  • Calibration History
  • Aligner System Diagnostics
  • Backup/Restore of Calibration and Setup Data
  • Integrated Help System (PDF)
  • Tools, Parts, and Adjustment Instructions
  • Advanced Customer Database with Backup/Restore
  • Multiple Units of Measure
  • Caster and SAI on Turntables
  • SAI Elevated
  • Live Caster, Camber, and Toe - Turntables
  • Live Caster, Camber, and Toe - Elevated
  • Camber and Toe - Turntables (Frozen Caster)
  • Camber and Toe - Elevated (Frozen Caster)
  • NorthStar Shim Program
  • Light Truck Bushing

Back To Features List




Measurements

  • Front Readings
  • Rear Readings
  • All Readings
  • SAI and Thrust Angle
  • Toe Out On Turns
  • Front and Rear Toe
  • FrameCheck™ Light Truck Frame Angle


Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Specifications

Wheel Size 13" - 24"
Tire Diameter Up to 37"
Track Width 48" - 96"
Wheelbase 70" - 180"
Power Requirements 120/230V, 1Ph, 60HZ

Accessories

Standard Accessories

Part Number Description
EAK0289J10A X-Light™ Wheel Clamps (Set of 4)
EAK0289J12A Front Left and Right Shatter-Proof Imaging Targets

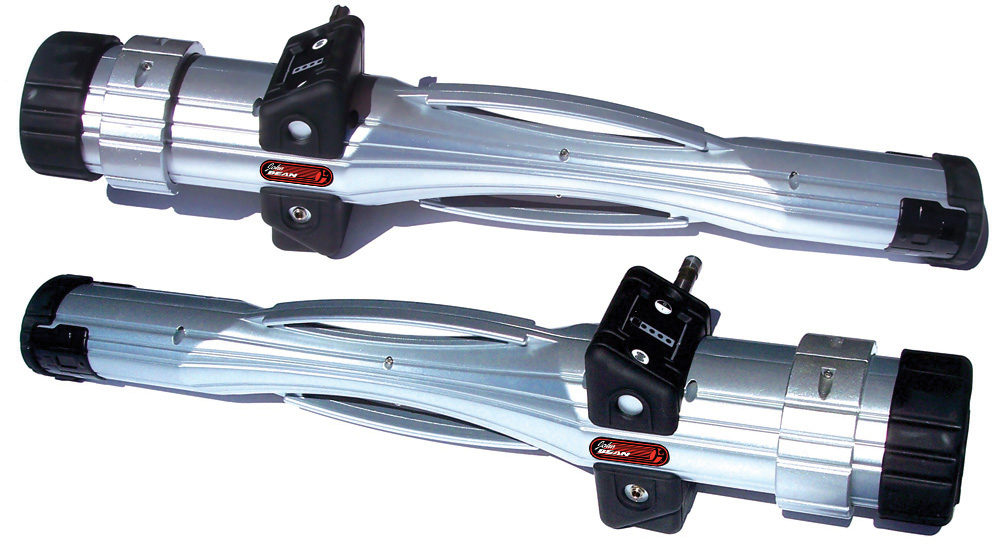

EAK0289J43A Rear Left and Right Pods
00055502000 Steering Wheel Holder
00000096000 Brake Pedal Depressor

Recommended Accessories

Part Number Description
EAK0289J06A Premium Turntables

Optional Accessories

Part Number Description
EAK0268J62A Universal Wheel Clamp Extension Kit (to 28")
EAK0268J63A Alloy Quick Clamp Kit
EAK0268J08A Remote Display Readout with 30’ Cable
P-1826 Convex Mirror 36" Wide with Hardware
