Visualiner 3D¹

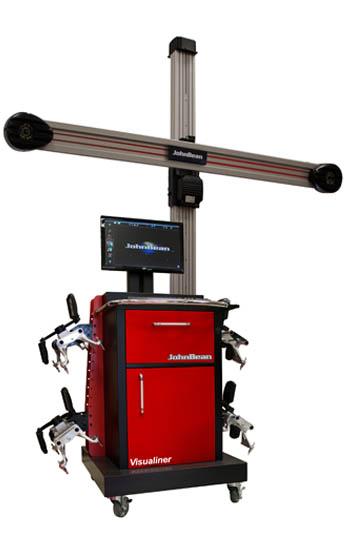

The V3D¹ imaging alignment system leverages patented imaging technology to provide accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits. This proven technology is matched with easy-to-use software that will have your technicians getting readings in a matter of minutes. (Shown with Optional Variable-Height Camera Support)

The V3D series will enable you to:

• Make more of your technicians alignment experts
• Generate more alignment business
• Eliminate comebacks
• Make More Money!



Click on one of the section titles to learn more about the V3D¹ Wheel Alignment System.

---

3D Animation

• Provides vehicle-specific adjustment information with easy-to-understand 3D graphics
• Refers to spare parts or special tools as applicable

Back To Features List

---

Optional Variable-Height Camera Support

• Variable-Height Camera Support (VHCS) (EAA0321J19C) - Shown with standard Camera Beam Assembly
• Eliminates the need tof fixed-position/level surfaces during alignments
• Positions cameras in range with a touch of a button - even during the alignment process!

Back To Features List

---

Universal Wheel Clamps

• Handles wheel diameters ranging 11" to 24" standard (Increase clamping diameter to 28" with Optional Clamp Extensions EAK0268J62A)
• Interchangeable grippers minimize wheel damage

Back To Features List

---

Optional Alloy Quick Clamp Kit

• (EAK0268J63A) Clamp accurately and safely on the tire to avoid scratching the wheel

Back To Features List

---

VODI*™

• Vehicle Orientation Directional Indicator
• Guides technician through measuring process
• Reduces the amount of time spent walking back and forth from the vehicle to the aligner console

Back To Features List

---

Ride Height Measurement*

• Review vehicle specs and request input from the technician for those vehicles requiring ride height measurement
• Measure manually or use the Target Imaging Pointer (TIP)

Back To Features List

---

EZ-Toe*

• Adjust front toe quickly
• Steer through full range of motion and maintain toe measurement at all times
• Eliminate redundant steps in front toe adjustments

Back To Features List

---

A-Arm Adjust*

• Achieve precise setting of difficult A-Arm adjustments, without the use of manual calculations or approximation

Back To Features List

---

Productivity-Enhancing Features

Zoom Readings Individual Camber Individual Toe Individual Caster Front Caster (-28° to +28°) Front and Rear Camber (-15° to +15°) Advanced Alignment Measurements with Reading/Specifications and Cross Values Meter Screens Live 3D Modeling* Voice Align™* (Optional) Remote Control (Optional) 3D Animation Video Help A-Arm Adjustments Adjust Camber Only Elevated Adjustments Cradle Adjustments Drag Link Adjustments 4-Wheel Steer Adjust Rear Shim Programs Driver Complaint Diagnostics A.I. Alignment Diagnostics Adjustment Help Files EZ-Track Database Vehicle Specs: 25+ Years EZ-Toe* Ride Height* Vehcile Dimensioning

User Login 2-Wheel Alignment Programmable Alignment Wizards Set-back in Align Path Thrust Align Only Selectable Cross Values 28 Languages Custom Inspections Multiple Print Formats Inspections and Reports Variable-Height Camera Support Controls Custom Vehicle Specifications Regional Specifications Calibration History Aligner System Diagnostics Backup/Restore of Calibration and Setup Data Integrated Help System (PDF) Tools, Parts, and Adjustment Instructions Advanced Customer Database with Backup/Restore Multiple Units of Measure Caster and SAI on Turntables SAI Elevated Live Caster, Camber and Toe - Turntables Live Caster, Camber and Toe - Elevated NorthStar Shim Program Light Truck Bushing iShop™, ShopKey™, ASANet™ compatible

Back To Features List

---

Measurements
Front Readings Rear Readings All Readings SAI and Thrust Angle Included Angle Toe Out On Turns	Front and Rear Toe Track Width Wheelbase Front and Rear Set-back FrameCheck™ Light Truck Frame Angle

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Wheel Size	13" - 24"
Tire Diameter	Unlimited
Track Width	48" - 96"
Wheelbase	79" - 180"
Power Requirements	120/230V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
00055502000	Steering Wheel Holder
00000096000	Brake Pedal Depressor
EAA0305J48A	Camera Beam Assembly
EAK0268J52A	Universal Wheel Clamps (13" - 24", Set of 4) and Shatter-proof Imaging Targets (2 Front and 2 Rear)

Recommended Accessories

Part Number	Description
EAK0289J06A	Premium Turntables
EAK0277J28A	Paddle Kit for Premium Turntables
EAK0277J39A	4-Post Rollback Kit
EAK0277J40A	12K Scissor Rollback Kit
EAK0277J47A	12K Scissor Roll Forward/Rollback Kit
EAK0277J67A	10K/14K Scissor Rollback Kit
EAK0277J45A	Hunter/Rotary Rollback Kit
EAK0256J71A	Ride Height Target Kit

Optional Accessories

Part Number	Description
EAK0222J17A	Voice Align™* Kit
8-05320A	Frame Angle Gauge
EAK0268J62A	Universal Wheel Clamp Extension Kit (to 28")
EAK0268J63A	Alloy Quick Clamp Kit
EAK0268J08A	Remote Display Readout with 30’ Cable
EAK0289J23A	Remote Control
P-1826	Convex Mirror 36" Wide with Hardware
EAK0222J83A	Hub Adapter Kit (Wheel-Off Alignment)
EAK0289J71A	Universal Wheel Clamp Floor Stand

Optional Camera Support Configurations

Part Number	Description
EAA0321J19C	Variable-Height Camera Support
EAA0321J01A	Fixed-Height Camera Support
EAK0289J36A	Wall/Pit Camera Support (Adjustable 36" - 60". Includes Convex Mirror)
EAK0289J63A	Wall/Pit Camera Support (8")
EAK0289J64A	Electronic-Tilt Camera System
