Product Overview
EEWA546AL
The V3D2 imaging alignment system leverages patented imaging technology to provide accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits. This proven technology is matched with easy-to-use software that will have your technicians getting readings in a matter of minutes. (Shown with Optional Variable-Height Camera Support)
The V3D series will enable you to:
- Make more of your technicians alignment experts
- Generate more alignment business
- Eliminate comebacks
- Make More Money!
Click on one of the section titles to learn more about the V3D2 Wheel Alignment System.
Features
3D Animation
- Provides vehicle-specific adjustment information with easy-to-understand 3D graphics
- Refers to spare parts or special tools as applicable
Optional Variable-Height Camera Support
- Variable-Height Camera Support (VHCS) (EAA0321J19C) - Shown with standard Camera Beam Assembly
- Eliminates the need tof fixed-position/level surfaces during alignments
- Positions cameras in range with a touch of a button - even during the alignment process!
Universal Wheel Clamps
- Handles wheel diameters ranging 11" to 24" standard (Increase clamping diameter to 28" with Optional Clamp Extensions EAK0268J62A)
- Interchangeable grippers minimize wheel damage
Optional Alloy Quick Clamp Kit
- (EAK0268J63A) Clamp accurately and safely on the tire to avoid scratching the wheel
VODI*™
- Vehicle Orientation Directional Indicator
- Guides technician through measuring process
- Reduces the amount of time spent walking back and forth from the vehicle to the aligner console
Software For Modified Vehicles*
- Minimize tire wear for vehicles with aftermarket wheels or other modifications
- Optimize handling characteristics by comparing the impact of modifications to OEM specifications and making appropriate adjustments
EZ-Access Software*
- Avoid having to work around the wheels when making adjustments
- Access hard-to-reach adjustment points that would be impossible to adjust with the wheels in the way
- Eliminate guess-and-check work - see results of your adjustments while you make them - even with the wheels off
- Perfect for quick and easy installation of aftermarket suspension kits as well as for OEM adjustments
- Reduces strain & fatigue on your technicians
Rolling Radius*
- Identify mismatched tire sizes - a potential cause of vehicle pulling and driver complaints
- Prevent damage to vehicles with all-wheel drive and ABS
Cross-Diagonal Measurements*
- Help diagnose possible collision damage
- Identify frame or structural issues that many shops miss
Ride Height Measurement*
- Review vehicle specs and request input from the technician for those vehicles requiring ride height measurement
- Measure manually or use the Target Imaging Pointer (TIP)
Toe Curve (Bump Steer)
- Measure changes in front toe as suspension height changes, which can affect directional stability
EZ-Toe*
- Adjust front toe quickly
- Steer through full range of motion and maintain toe measurement at all times
- Eliminate redundant steps in front toe adjustments
A-Arm Adjust*
- Achieve precise setting of difficult A-Arm adjustments, without the use of manual calculations or approximation

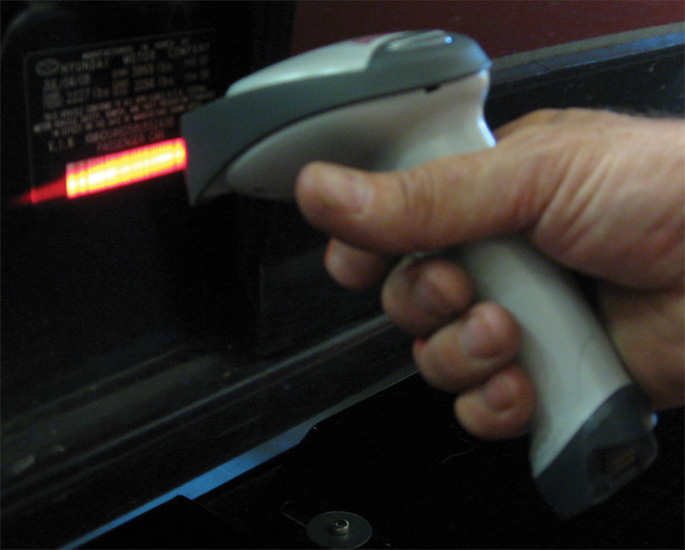

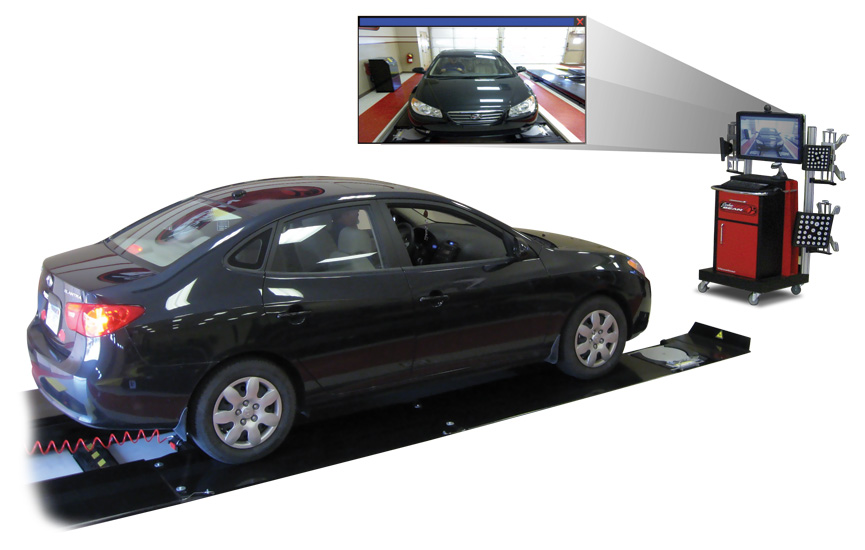

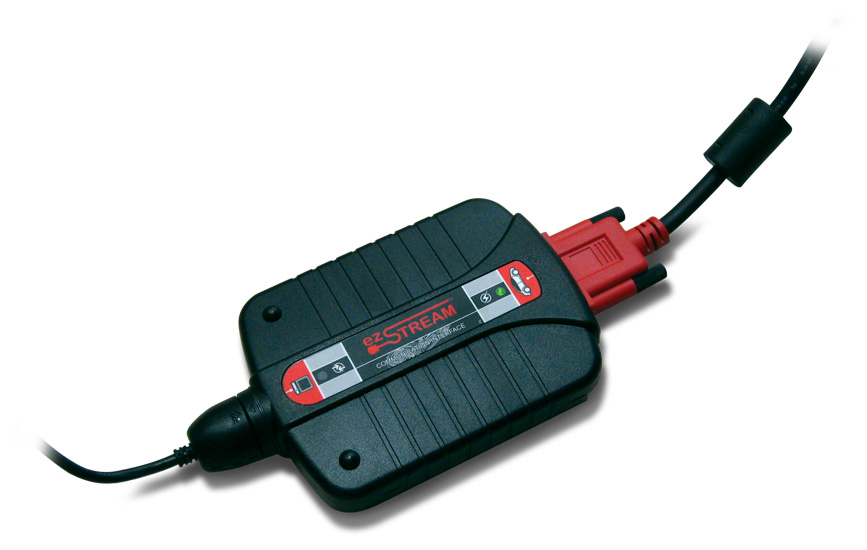

Productivity-Enhancing Features |
|
|
|
Measurements |
|
|
|
Back To Features List | Back To Top | *Patented and/or Patent-Pending Features
Specifications
| Wheel Size | 13" - 24" |
|---|---|
| Tire Diameter | Unlimited |
| Track Width | 48" - 96" |
| Wheelbase | 79" - 180" |
| Power Requirements | 120/230V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| 00055502000 | Steering Wheel Holder |
| 00000096000 | Brake Pedal Depressor |
| EAK0289J23A | Remote Control |
| EAA0305J48A | Camera Beam Assembly |
| EAK0268J52A | Universal Wheel Clamps (13" - 24", Set of 4) and Shatter-proof Imaging Targets (2 Front and 2 Rear) |
Recommended Accessories
| Part Number | Description |
|---|---|
| EAK0289J06A | Premium Turntables |
| EAK0277J28A | Paddle Kit for Premium Turntables |
| EAK0277J39A | 4-Post Rollback Kit |
| EAK0277J40A | 12K Scissor Rollback Kit |
| EAK0277J47A | 12K Scissor Roll Forward/Rollback Kit |
| EAK0277J67A | 10K/14K Scissor Rollback Kit |
| EAK0277J45A | Hunter/Rotary Rollback Kit |
| EAK0256J71A | Ride Height Target Kit |
Optional Accessories
| Part Number | Description |
|---|---|
| EAK0222J17A | Voice Align™* Kit |
| 8-05320A | Frame Angle Gauge |
| EAK0268J62A | Universal Wheel Clamp Extension Kit (to 28") |
| EAK0268J63A | Alloy Quick Clamp Kit |
| EAK0268J08A | Remote Display Readout with 30’ Cable |
| P-1826 | Convex Mirror 36" Wide with Hardware |
| EAK0222J83A | Hub Adapter Kit (Wheel-Off Alignment) |
Optional Camera Support Configurations
| Part Number | Description |
|---|---|
| EAA0321J19C | Variable-Height Camera Support |
| EAA0321J01A | Fixed-Height Camera Support |
| EAK0289J36A | Wall/Pit Camera Support (Adjustable 36" - 60". Includes Convex Mirror) |
| EAK0289J63A | Wall/Pit Camera Support (8") |
| EAK0289J64A | Electronic-Tilt Camera System |
