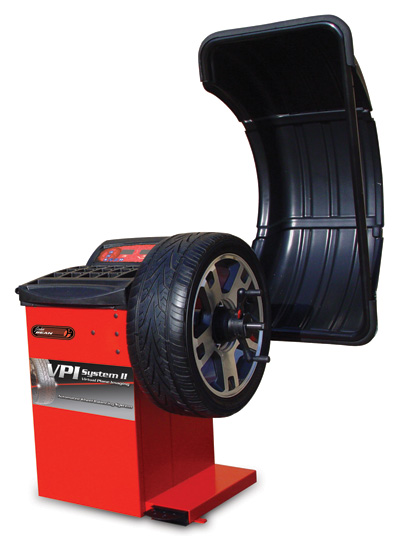

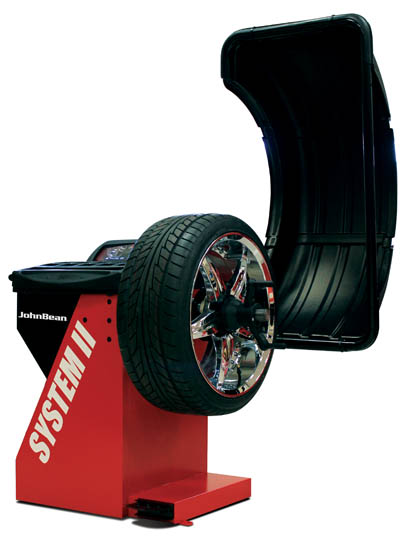

VPI System II

The VPI System II wheel balancer provides the ideal combination of performance and value. With proven Virtual Plane Imaging™ technology and advanced, money-making features, the VPI System II wheel balancer gives your shop all the tools needed to boost profits.

John Bean’s VPI Series Wheel Balancers will enable you to:

• Save time
• Reduce come-backs
• Handle a wide range of high-performance/aftermarket wheels
• Perform single-spin balances - every time
• Give your shop more high-end wheel balance offerings
• Make More Money!



Click on one of the section titles to learn more about the VPI System II Wheel Balancer.

---

Semi-Automatic Parameter Entry

• Use the inner auto-assist data input arm to quickly and accurately capture wheel distance and diameter, and also to place tape weights behind spokes or on the inside edge of the wheel

Inner Auto-Assist Data Input Arm Measures Wheel Distance and Diameter	Inner Auto-Assist Data Input Arm also places tape weights behind spokes or on inner edge of wheel

Back To Features List

---

Store Data For Up To 5 Tire Sizes

• Stores all data parameters for up to five different tire sizes commonly used in your shop - enabling faster setups

Back To Features List

---

Multiple Operator Memory

• Allows up to four technicians to work on the same balancer!

Back To Features List

---

Spin and Job Counters

• Track number of spins and balances over time

Back To Features List

---

Optional WeightMiser™ Software

• Helps reduce weights used while maintaining acceptable balance and ride quality. The operator has the option of using a smaller (less costly) weight with a touch of a button

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Maximum Wheel & Tire Assembly Weight	133 lbs.
Maximum Wheel & Tire Assembly Diameter	44"
Maximum Wheel & Tire Assembly Width	21"
Wheel Diameter Range	8" - 30"
Balancer Shaft Diameter	40mm
Balancing Accuracy	0.035oz
Measuring Speed	100 RPM
Weight Storage Pockets	19
Data Entry (Wheel Distance, Diameter, & Width)	Automatic via Auto-Assist Data Input Arm (Distance and Diameter), Manual (Width)
Display	Integrated 3-Window LED
Dimensions (DxWxH)	48.5"x51"x54"
Shipping Weight	325 lbs
Power Requirements	230V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
EAM0005D40A	Calibration Weight
EAA0247G21A	Wheel Width Gauge

Optional Accessories

Because wheel designs are unique and ever-changing, standardized cone packages lack the flexibility to meet the mounting demands of today’s wheels. Putting our customer’s needs first, John Bean offers a selection of cone packages capable of servicing a wide range of wheel and tire assemblies.

Part Number	Description
EAK0221J31A	7 Cone Kit (1.7" - 6.3")
EAK0221J60A	4 Cone Kit (2.1" - 5.2")
EAK0221J50A	1 Ton Plate Package
EAK0221J51A	CenTor System (For SUV and Light Truck)
EAK0221J52A	Light Truck Package
EAK0221J53A	Gold Package 1
EAK0221J54A	Gold Package 2
EAK0221J55A	Platinum Package 1
EAK0221J56A	Platinum Package 2
