Snap-on Equipment’s John Bean Wheel Balancer Products - VPI System III Page

Home → Products: Wheel Balancers → VPI System III

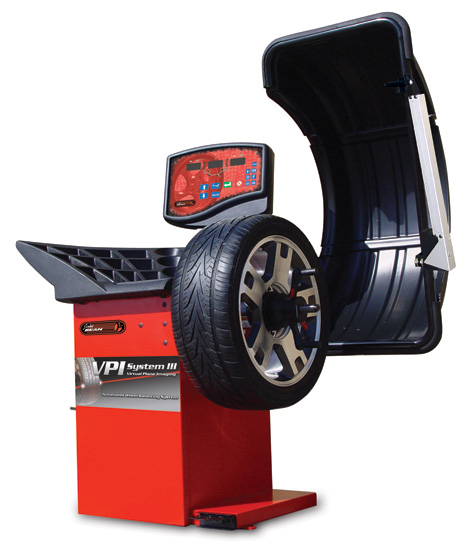

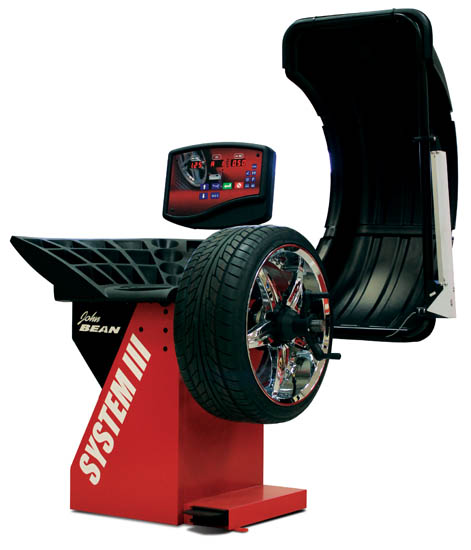

John Bean VPI System III Wheel Balancer - Click to enlarge

Model: EEWB502B (With Quick Mount Speed Nut)
Model: EEWB502P (With Power Clamping)

The VPI System III features Semi-Automatic Parameter entry of distance, width and diameter data. The technician just places the two data set arms at the rim positions for automatic data entry. Using a fast 6 second cycle time, precision Virtual Plane Imaging technology accurately calculates weight amount and location for super accurate single spin wheel balancing. A specialty mode for weight placement, inside the rim edge and behind the spoke, is standard. This feature is especially important for many OEM and aftermarket wheels requiring wheel balancing along with hidden weights for the best cosmetic appearance. For additional diagnostics the on board matching program can recommend best tire to rim positioning and calculate tire and rim imbalance and provide percentage contributions to aid in diagnostics. Wheel diameters to 44", rim diameters to 30", and 154 lbs wheels can be accommodated on this unit.

→ Key Benefits
→ Standard Equipment
→ Specifications

*Patented and/or Patent Pending Features

Key Benefits

Semi-automatic data entry in all three parameters
Virtual Plane Imaging for greater accuracy
Automatically stops at correct weight positions - 2 planes
ALUs weight placement arm with 2-plane auto-memory lock for precise tape weight placements
Pedal activated spindle lock for more accurate weight placements
Hidden weights behind spokes capability
Divided weights, standard or tape capabilities
Built-in wheel and tire diagnostics
17 deep-capacity weight storage pockets
FAST, 6 second or less cycle time for average 13" - 16" wheel
Three window LED displays
Raised, ergonomically adjustable display/controls
Safety hood with auto-start feature
Match Balancing & Wheel Optimization modes
Quick nut
Power Clamp (Model EEWB502P Only)
Fast, easy operator calibration
Store parameters for up to 5 popular wheels
Built-in memory for multiple operators (4)
Built-in electronic counters for monitoring use and productivity
Built-in cone storage in the molded top
Extra accessory storage pegs on the side
No Bolt-down installation

Standard Equipment

Quick clamp speed nut
Captured back spring
Four hardened centering cones
Weight hammer/pliers
Rim width calipers
Safety wheel hood

Specifications

Maximum tire diameter:	44"
Maximum rim width:	3-20"
Max rim diameter capacity:	8-30"
Maximum wheel weight:	154 lbs.
Shaft diameter:	40 mm
Balance shaft speed:	200 RPM
Balancing modes:	5 ALU, 1 Static, 1 Dynamic
Angular accuracy:	0.7 degrees
Imbalance accuracy:	0.05 oz.)
Cycle time:	6 seconds (average 13" - 16" wheel)
Number of weight pockets:	17
Motor:	1 HP (acceleration HP)
Space requirement:	60" by 49"
Electrical requirement:	220V / 1 Ph / 50-60 Hz
Shipping weight:	380 lbs.
