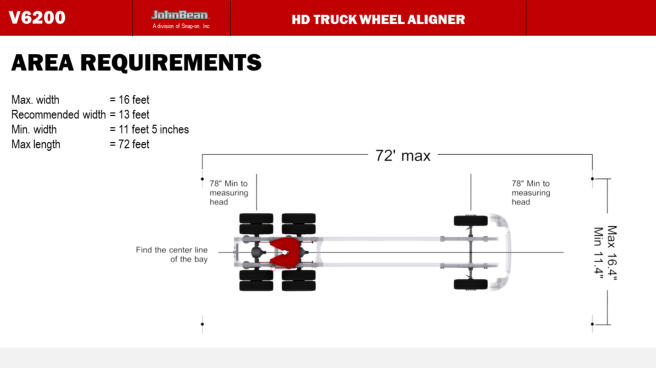

THE HD TRUCK ALIGNMENT BOX SIZE
Maximum distance between the targets is 72’
Maximum width between the targets is 16’ 4”
Minimum width between the targets is 11’ 4”
Minimum distance from the rear tartgets to the rear axle 6’ 6”
Minimum distance from the front targets to the front axle is 6’ 6”

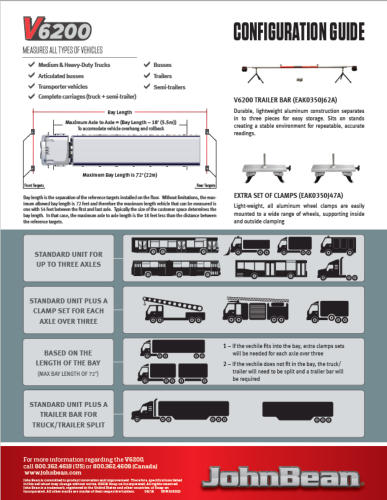

EQUIPMENT CONFIGURATOR
Standard components
2 X Measuring heads
3 X Sets of wheel clamps

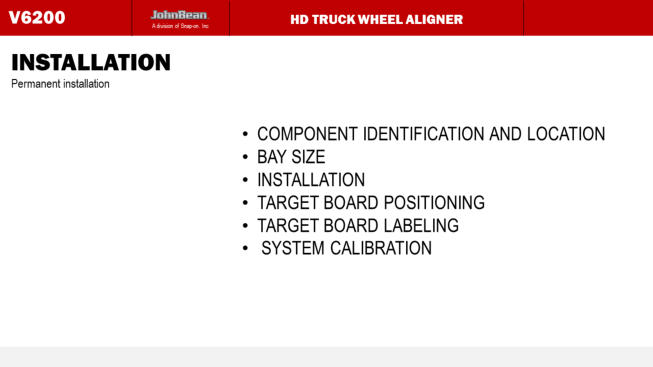

FOR INSTALLERS
•
Pre-alignment equipment site preparation
•
Information and dimensions
•
Target floor anchor location
•
Target and target poles assembly
